USE AND CHARACTER:
--This machine is suitable for continuous punching operations of various non-metallic coils and sheet materialsusing forming dies, and can be applied to industries such as clothing, shoes and hats, medical equipment, culturalsupplies, sports equipment, etc.

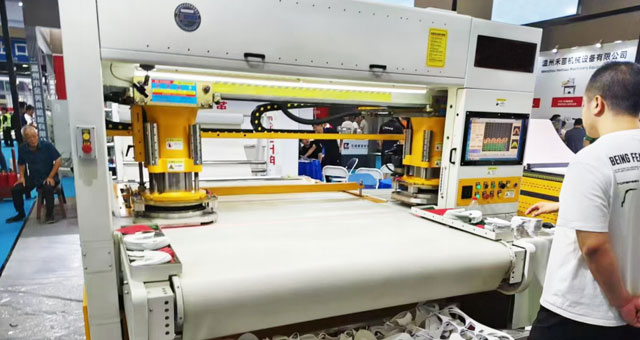

--The machine is controlled by an upper computer and has functions such as knife imitation, electronic graphicinput, automatic typesetting, and is displayed on the screen. lt can accurately control the movement of themachine in the X, Y, Z, and B directions, and the punch automatically cuts according to the typesetting position.
--Specially designed oil system with high pressure. Utilize flywheel energy storage to save energy. The cuttingfrequency can reach up to 50 times per minute at the fastest.The machine is equipped with dual punch heads, which automatically replace punch dies of different
specifications to extract materials.
--The machine has a memory function and can store multiple working modes. The machine uses rodless cylindersto control the entry and exit of the cutting die, ensuring smooth operation and fast speed.
--The machine adopts a skateboard type feeding mechanism with automatic circulation material laying functionwhich can punch and cut very thin and soft roll shaped materials, as well as slice shaped materials.
--Driven by servo motor, the feeding position is precise; Using servo motor drive and ball screw transmission toensure precise positioning of the punch
--The use of servo motors to rotate the punch ensures the accuracy of the cutting position; Using servo motors tocontrol the position of the cutting die in the tool magazine, with high efficiency and accurate positioning.
--Protective nets are installed around the machine, and safety light curtains are installed at the discharge outlet toimprove the safety of the machine.
--Special specifications can be customized.

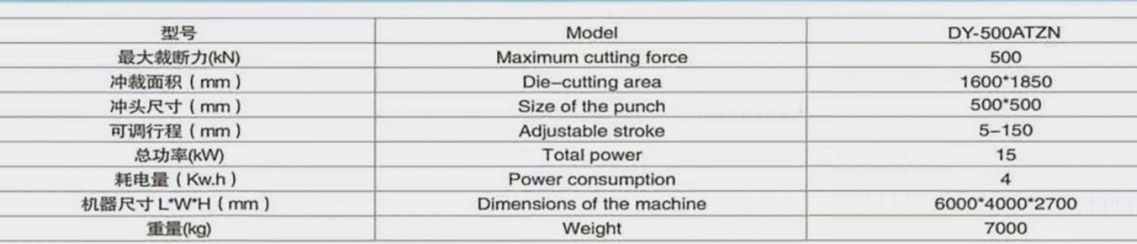

TECHNICAL SPECIFCATION
